2:1 Polyolefin Heatshrink Tubing Supplier In Surat

Polyolefin Heatshrink Tubing supplier in Surat, Woer Heatshrink Tubing supplier in Surat

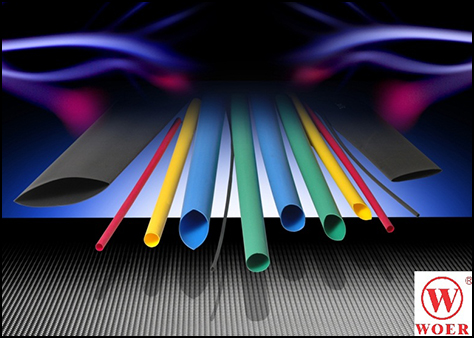

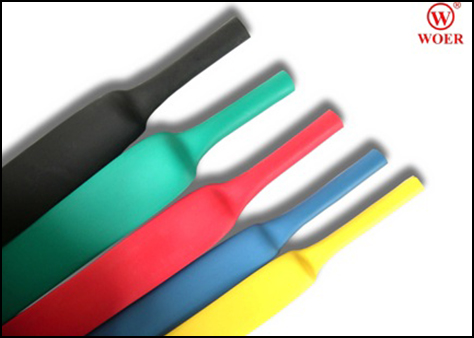

2:1 Polyolefin Heat shrink Tubing

Heatshrink tubing is the ideal way to create a tight, professional finish on any wire, hose or cable management project. Once shrunk, the tubing will hold its reduced state, even in elevated temperatures. Typical applications for the heatshrink tube include: electrical insulation, termination, splicing, cable bundling, color coding, strain relief, wire marking, identification, mechanical protection, corrosion protection, abrasion protection and moisture and weather sealing.

When economy is the driving force, ShrinkFlex 2:1 heatshrink tubing is the answer. Not as versatile as a high ratio shrink product, 2:1 will still slide easily over small inline splices and connectors and shrink down to 50% of its original diameter to fit snugly over the wires.

Description

Zero halogen, flexible Heat shrink sleeve

  • Flexible
  • Zero halogen
  • Flame retardant
  • Low smoke generation if burning
  • Continuous Operating Temperature:-45 to125
  • Shrink Temperature:120
  • RoHS and Sony compliant
Use Electrical Heat Gun to shrink the sleeves for best result.

Dimensions, Technical.

Size As supplied After Recovery(mm) Standard Package
Inch mm Internal diameter(mm) Internal diameter Max(mm) Wall thickness Nom(mm) Spool Length
mtrs/spool
3/64 0.8 1.1±0.2 0.50 0.22 200
1/16 1.0 1.5±0.2 0.65 0.28 200
1.5 2.0±0.2 0.85 0.32 200
3/32 2.0 2.5±0.2 1.00 0.35 200
2.5 3.0±0.2 1.30 0.38 200
1/8 3.0 3.5±0.2 1.50 0.40 200
3.5 4.0±0.2 1.80 0.42 200
4.0 4.5±0.2 2.00 0.45 200
3/16 4.5 5.0±0.2 2.30 0.50 200
5.0 5.5±0.2 2.5 0.55 100
1/4 6.0 6.5±0.2 3.0 0.55 100
5/16 7.0 7.5±0.3 3.5 0.55 100
8.0 8.5±0.3 4.0 0.60 100
3/8 9.0 9.5±0.3 4.5 0.60 100
10.0 10.5±0.3 5.0 0.60 100
11.0 11.5±0.3 5.5 0.60 100
1/2 12.0 12.5±0.3 6.0 0.60 100
13.0 13.5±0.3 6.5 0.65 100
14.0 14.5±0.3 7.0 0.65 100
5/8 15.0 15.5±0.4 7.5 0.70 100
16.0 16.5±0.4 8.0 0.70 100
17.0 17.5±0.4 8.5 0.70 100
3/4 18.0 19.0±0.5 9.0 0.80 100
20.0 21.0±0.5 10.0 0.80 100
22.0 23.0±0.5 11.0 0.80 100
1 25.0 26.0±0.5 12.5 0.90 50
28.0 29.0±0.5 14.0 0.90 50
1-1/4 30.0 31.5±1.0 15.0 0.95 50
35.0 36.5±1.0 17.5 1.00 50
1-1/2 40.0 41.5±1.0 20.0 1.00 50
45.0 46.5±1.0 22.5 1.00 25
2 50.0 ≥50 25.0 1.00 25
60.0 ≥60 31.0 1.30 25
70.0 ≥70 36.0 1.30 25
3 80.0 ≥80 41.0 1.46 25
90.0 ≥90 46.0 1.46 25
4 100.0 ≥100 51.0 1.46 25
5 120.0 ≥120 61.0 1.56 25
6 150.0 ≥150 76.0 1.56 25
7 180.0 ≥180 91.0 1.56 25
